Region Shapes

Regions provides Region objects, representing projected planar “region-in-image” shapes (defined in pixel or sky coordinates), and also representing spherical “region-on-celestial-sphere” shapes (defined using sky coordinates).

The provided Region objects represent shapes such as circles, ellipses, rectangles, polygons, lines, and points. There are also regions defining circular, elliptical, and rectangular annuli, and a longitude/latitude range (in spherical geometry).

Defining Shapes

This section shows examples of how to construct a region for each shape that’s currently supported.

Circle

CircleSkyRegion, CirclePixelRegion, and CircleSphericalSkyRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord
>>> from regions import (CircleSkyRegion, CirclePixelRegion,
...                      CircleSphericalSkyRegion)

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = CircleSkyRegion(center=center_sky, radius=3 * u.deg)
>>> region_sph_sky = CircleSphericalSkyRegion(center=center_sky, radius=3 * u.deg)
>>> region_pix = CirclePixelRegion(center=PixCoord(x=42, y=43),
...                                radius=4.2)

CircleAnnulusSkyRegion, CircleAnnulusPixelRegion, and CircleAnnulusSphericalSkyRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord
>>> from regions import (CircleAnnulusSkyRegion,
...                      CircleAnnulusPixelRegion,
...                      CircleAnnulusSphericalSkyRegion)

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = CircleAnnulusSkyRegion(center=center_sky,
...                                     inner_radius=3 * u.deg,
...                                     outer_radius=4 * u.deg)
>>> region_sph_sky = CircleAnnulusSphericalSkyRegion(center=center_sky,
...                                                  inner_radius=3 * u.deg,
...                                                  outer_radius=4 * u.deg)
>>> region_pix = CircleAnnulusPixelRegion(center=PixCoord(x=42, y=43),
...                                       inner_radius=4.2,
...                                       outer_radius=5.2)

Ellipse

EllipseSkyRegion and EllipsePixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord
>>> from regions import EllipseSkyRegion, EllipsePixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = EllipseSkyRegion(center=center_sky,
...                               height=3 * u.deg, width=3 * u.deg,
...                               angle=5 * u.deg)
>>> region_pix = EllipsePixelRegion(center=PixCoord(x=42, y=43),
...                                 height=4.2, width=4.2,
...                                 angle=5 * u.deg)

EllipseAnnulusSkyRegion and EllipseAnnulusPixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord
>>> from regions import EllipseAnnulusSkyRegion, EllipseAnnulusPixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = EllipseAnnulusSkyRegion(center=center_sky,
...                                      inner_width=3 * u.deg,
...                                      outer_width=4 * u.deg,
...                                      inner_height=6 * u.deg,
...                                      outer_height=7 * u.deg,
...                                      angle=6 * u.deg)
>>> region_pix = EllipseAnnulusPixelRegion(center=PixCoord(x=42, y=43),
...                                        inner_width=4.2,
...                                        outer_width=5.2,
...                                        inner_height=7.2,
...                                        outer_height=8.2,
...                                        angle=6 * u.deg)

Rectangle

RectangleSkyRegion and RectanglePixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord
>>> from regions import RectangleSkyRegion, RectanglePixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = RectangleSkyRegion(center=center_sky,
...                                 width=3 * u.deg, height=4 * u.deg,
...                                 angle=5 * u.deg)
>>> region_pix = RectanglePixelRegion(center=PixCoord(x=42, y=43),
...                                   width=3, height=4,
...                                   angle=5 * u.deg)

RectangleAnnulusSkyRegion and RectangleAnnulusPixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import PixCoord, RectangleAnnulusSkyRegion
>>> from regions import RectangleAnnulusPixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = RectangleAnnulusSkyRegion(center=center_sky,
...                                        inner_width=3 * u.deg,
...                                        outer_width=4 * u.deg,
...                                        inner_height=6 * u.deg,
...                                        outer_height=7 * u.deg,
...                                        angle=15 * u.deg)
>>> region_pix = RectangleAnnulusPixelRegion(center=PixCoord(x=42, y=43),
...                                          inner_width=4.2,
...                                          outer_width=5.2,
...                                          inner_height=7.2,
...                                          outer_height=8.2,
...                                          angle=15 * u.deg)

Polygon

PolygonSkyRegion, PolygonPixelRegion, PolygonSphericalSkyRegion, and RegularPolygonPixelRegion. (Note that currently PolygonSphericalSkyRegion only supports convex polygons.)

>>> from astropy.coordinates import SkyCoord
>>> from regions import (PixCoord,
...                      PolygonSkyRegion,
...                      PolygonPixelRegion,
...                      PolygonSphericalSkyRegion)
>>> from regions import RegularPolygonPixelRegion

>>> vertices = SkyCoord([1, 2, 2], [1, 1, 2], unit='deg', frame='fk5')
>>> region_sky = PolygonSkyRegion(vertices=vertices)
>>> region_sph_sky = PolygonSphericalSkyRegion(vertices=vertices)
>>> vertices = PixCoord(x=[1, 2, 2], y=[1, 1, 2])
>>> region_pix = PolygonPixelRegion(vertices=vertices)
>>> center = PixCoord(25, 25)
>>> region2_pix = RegularPolygonPixelRegion(center, 6, 15)

Range

RangeSphericalSkyRegion (Range has no direct analog in planar geometry. Instead, this shape can be transformed by discretizing to a polygon and transforming the polygon.)

>>> from astropy.coordinates import SkyCoord
>>> from astropy import units as u
>>> from regions import RangeSphericalSkyRegion

>>> sph_range = RangeSphericalSkyRegion(frame="galactic",
...                                     longitude_range=[315,45]*u.deg,
...                                     latitude_range=[0,45]*u.deg)

Point

PointSkyRegion and PointPixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from regions import PixCoord, PointSkyRegion, PointPixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = PointSkyRegion(center=center_sky)
>>> region_pix = PointPixelRegion(center=PixCoord(x=42, y=43))

Line

LineSkyRegion and LinePixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from regions import PixCoord, LineSkyRegion, LinePixelRegion

>>> start_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> end_sky = SkyCoord(52, 53, unit='deg', frame='fk5')
>>> region_sky = LineSkyRegion(start=start_sky, end=end_sky)
>>> region_pix = LinePixelRegion(start=PixCoord(x=42, y=43),
...                              end=PixCoord(x=52, y=53))

Text

The text regions can be used to annotate a text string on an image.

TextSkyRegion and TextPixelRegion

>>> from astropy.coordinates import SkyCoord
>>> from regions import PixCoord, TextSkyRegion, TextPixelRegion

>>> center_sky = SkyCoord(42, 43, unit='deg', frame='fk5')
>>> region_sky = TextSkyRegion(center=center_sky, text='Demo Text')
>>> region_pix = TextPixelRegion(center=PixCoord(x=42, y=43),
...                              text='Demo Text')

Region Transformations

For nearly all region shapes there are three classes. First, for planar projections (e.g., “regions-on-image”, with Euclidean geometry), there is one class representing a “sky region” and another representing a “pixel region” on a given image. There are also spherical region classes, representing a “celestial sphere region” (with spherical geometry).

(The spherical class for some shapes is not currently implemented. Additionally, some spherical classes do not have projected/planar analogs, including RangeSphericalSkyRegion and LuneSphericalSkyRegion.)

A key feature of the regions package is that it is possible to convert back and forth between sky and image regions given a WCS object (e.g., WCS). For conversions to and from spherical sky regions, it is also necessary to specify how boundary distortions (from projection effects) should be treated.

Planar sky and pixel region transformations

As an example, let’s use the CircleSkyRegion, a planar sky circle region:

>>> from astropy.coordinates import Angle, SkyCoord
>>> from regions import CircleSkyRegion

>>> center = SkyCoord(50, 10, unit='deg')
>>> radius = Angle(30, 'arcsec')
>>> sky_reg = CircleSkyRegion(center, radius)

To convert it to a pixel circle region (i.e., CirclePixelRegion), call the to_pixel() method with a WCS object:

>>> pix_reg = sky_reg.to_pixel(wcs)
>>> print(pix_reg)
Region: CirclePixelRegion
center: PixCoord(x=55.3521, y=40.0958)
radius: 0.0060

Also to convert a PixelRegion to a SkyRegion, call the to_sky() method with a WCS object:

>>> sky_reg = pix_reg.to_sky(wcs)
>>> print(sky_reg)
Region: CircleSkyRegion
center: <SkyCoord (Galactic): (l, b) in deg
    (172.17231545, -38.27972337)>
radius: 29.999999999999996 arcsec

The conversion automatically selects the best method based on the WCS. For WCS with distortions (e.g., SIP) or non-astropy WCS objects (e.g., GWCS), the local Jacobian matrix of the WCS transformation is computed at the region center. This allows the scale factors along the width and height directions to differ, providing accurate conversions even for distorted WCS. For simple WCS without distortions, a faster offset-based method is used, which is exact in that case.

Note that all conversion methods are approximations that use the local pixel scale at the region center. Projection effects over the extent of the region are not accounted for. The region shape type is always preserved through the conversion (e.g., a CirclePixelRegion converts to a CircleSkyRegion and vice versa).

Spherical to planar region transformations

To demonstrate the transformation from spherical to planar regions, let’s now use a CircleSphericalSkyRegion, a sky circle defined in spherical geometry:

>>> from regions import CircleSphericalSkyRegion

>>> center = SkyCoord(50, 10, unit='deg')
>>> radius = Angle(30, 'arcsec')
>>> sph_sky_reg = CircleSphericalSkyRegion(center, radius)

To convert it to a planar sky circle region (i.e., CircleSkyRegion), call the to_sky() method. If boundary distortions are ignored (i.e., a spherical circle is transformed to a planar circle), then a WCS object is not necessary:

>>> sky_reg = sph_sky_reg.to_sky(include_boundary_distortions=False)
>>> print(sky_reg)
Region: CircleSkyRegion
center: <SkyCoord (ICRS): (ra, dec) in deg
    (50., 10.)>
radius: 30.0 arcsec

To convert to a planar sky region that accounts for boundary distortions arising from projection effects, a WCS object must be passed (defining the projection). In this case, the spherical region boundary is discretized into a polygon before transforming, and a PolygonSkyRegion instance is returned. The number of points per side in the discretization (for a circle, the number of points around the circumference) can be specified through optional keywords that are passed to the discretize_boundary() method.

>>> sky_reg = sph_sky_reg.to_sky(wcs=wcs,
...                              include_boundary_distortions=True,
...                              n_points=10)
>>> print(sky_reg)
Region: PolygonSkyRegion
vertices: <SkyCoord (Galactic): (l, b) in deg
    [(172.161888  , -38.27816116), (172.16270941, -38.28327092),
    (172.16720048, -38.2870257 ), (172.1736458 , -38.28799101),
    (172.17958283, -38.28579805)], ...]>

Similarly, spherical sky regions can be converted to pixel regions by specifying a WCS object and whether to ignore or include boundary distortions (returning either a CirclePixelRegion or PolygonPixelRegion, respectively).

>>> pix_reg = sph_sky_reg.to_pixel(wcs=wcs,
...                                include_boundary_distortions=False)
>>> print(pix_reg)
Region: CirclePixelRegion
center: PixCoord(x=55.3521, y=40.0958)
radius: 0.006

>>> pix_reg2 = sph_sky_reg.to_pixel(wcs=wcs,
...                                 include_boundary_distortions=True,
...                                 n_points=10)
>>> print(pix_reg2)
Region: PolygonPixelRegion
vertices: PixCoord(x=[55.3544 55.3625 55.3666 55.3651 55.3587 ...],
y=[40.0992 40.0935 40.0886 40.0865 40.088 ...])

Planar regions can also be transformed to spherical regions, with the to_spherical_sky and to_spherical_sky methods.

>>> center = SkyCoord(50, 10, unit='deg')
>>> radius = Angle(30, 'arcsec')
>>> sky_reg = CircleSkyRegion(center, radius)
>>> sph_sky_reg = sky_reg.to_spherical_sky(include_boundary_distortions=False)
>>> print(sph_sky_reg)
Region: CircleSphericalSkyRegion
center: <SkyCoord (ICRS): (ra, dec) in deg
    (50., 10.)>
radius: 30.0 arcsec

Selectors for Regions

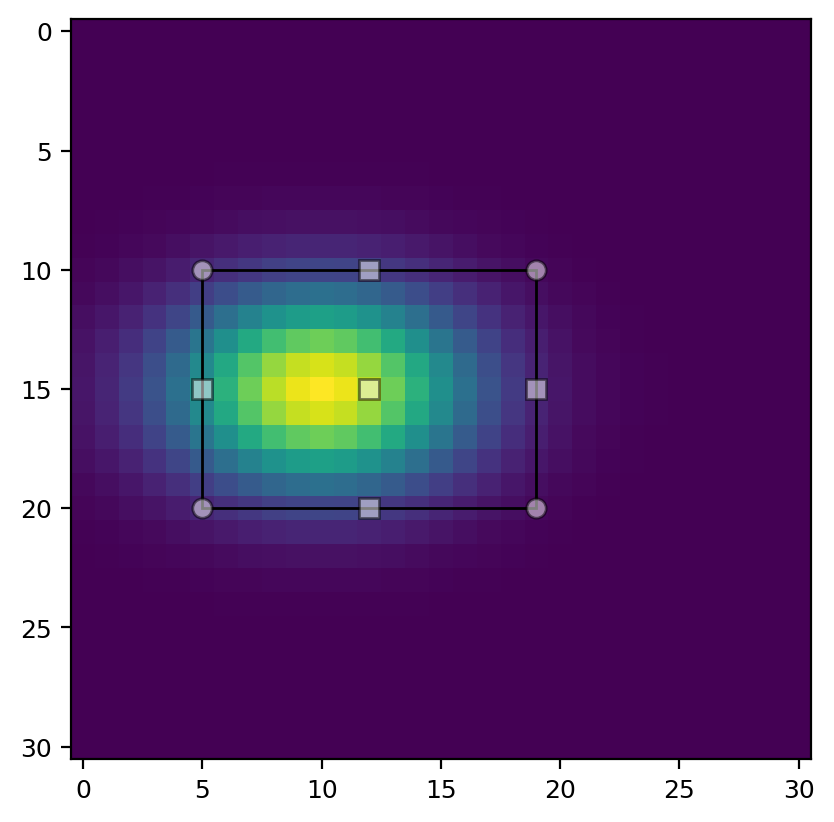

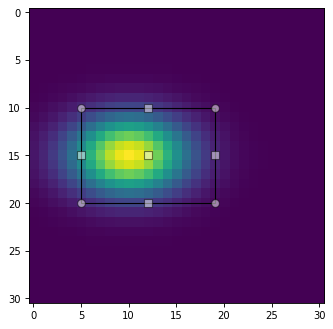

Several geometric regions (at this time, RectanglePixelRegion and EllipsePixelRegion) provide a method as_mpl_selector() to create an interactive editable matplotlib widget that will be connected to its parent region.

import matplotlib.pyplot as plt
import numpy as np
from regions import PixCoord, RectanglePixelRegion

x, y = np.mgrid[-15:16, -10:21]
z = np.exp(-(x / 4)**2 - (y / 6)**2)
ax = plt.subplot()
img = ax.imshow(z)

rectangle = RectanglePixelRegion(center=PixCoord(x=12, y=15), width=14, height=10)
selector = rectangle.as_mpl_selector(ax)

(Source code, png, hires.png, pdf, svg)

The selector creates and establishes a link to a matplotlib Selector widget that allows manually positioning the rectangle region at the central point, and scaling it by dragging its corner points. Several modifier keys as specified by the state_modifier_keys parameter to matplotlib.widgets.RectangleSelector provide further control of the manipulation of this widget, with the following operations available:

• “move”: Move the existing shape from anywhere, default: “space”.

• “clear”: Clear the current shape, default: “escape”.

• “square”: Make the shape square, default: “shift”.

• “center”: Change the shape around its center, default: “ctrl”.

• “rotate”: Rotate the shape around its center, default: “r” (toggles, requires Matplotlib 3.6+).

Via the optional callback parameter this method can be passed a custom function that will be called on every update of the region, i.e., after every move or resize of the selector. For an example of its usage see Interactive Mask Control.

Multiple Regions

A Region object can represent only one region, not an array (e.g., vector or list) of regions.

This is in contrast to the aperture classes in Photutils like photutils.aperture.CircularAperture that do allow the positions (but usually not the other parameters) to be arrays:

>>> from photutils import CircularAperture
>>> positions = [(1, 2), (3, 4)]
>>> apertures = CircularAperture(positions, r=4.2)

To represent lists of Region objects, you can store them in Python lists or the Regions class, which effectively acts like a list of regions. To create many similar regions or process many regions you can use for loops or list comprehensions.

>>> from regions import PixCoord, CirclePixelRegion
>>> from regions import Regions
>>> regions = [CirclePixelRegion(center=PixCoord(x, y), radius=4.2)
...            for x, y in [(1, 2), (3, 4)]]
>>> for region in regions:
...    print(region.center)
PixCoord(x=1, y=2)
PixCoord(x=3, y=4)
>>> [region.area for region in regions]
[55.41769440932395, 55.41769440932395]

To create a Regions object, simply pass in a list of regions:

>>> regs = Regions(regions)
>>> print(regs[0])
Region: CirclePixelRegion
center: PixCoord(x=1, y=2)
radius: 4.2
>>> [reg.area for reg in regs]
[55.41769440932395, 55.41769440932395]

The Regions class also provides a unified interface for reading, writing, parsing, and serializing regions data in different standard formats.
