Plotting Regions with Matplotlib

Plotting Pixel Regions

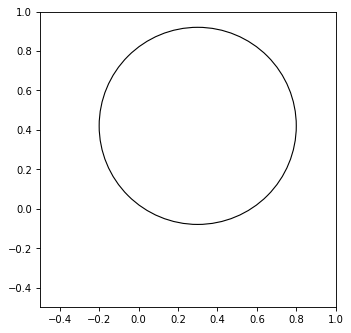

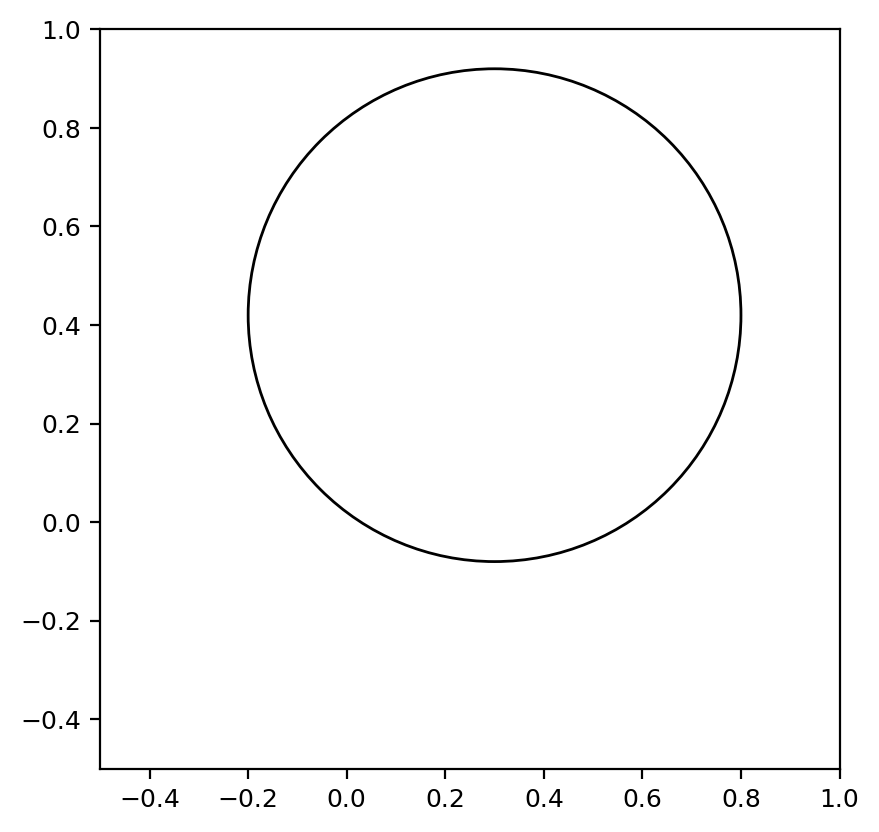

Some PixelRegion objects have an as_artist() method that returns an equivalent matplotlib.patches object. For example regions.CirclePixelRegion.as_artist() returns a matplotlib.patches.Circle object.

To draw a matplotlib patch object, add it to an matplotlib.axes.Axes object.

from regions import PixCoord, CirclePixelRegion
import matplotlib.pyplot as plt

region = CirclePixelRegion(PixCoord(x=0.3, y=0.42), radius=0.5)
artist = region.as_artist()

axes = plt.gca()
axes.set_aspect('equal')
axes.add_artist(artist)
axes.set_xlim([-0.5, 1])
axes.set_ylim([-0.5, 1])

(Source code, png, hires.png, pdf, svg)

_images/plotting-1.png

The default keyword arguments for the matplotlib artist depend on the value of the default_style keyword in the RegionVisual dictionary. This keyword is currently set (to a value of ‘ds9’) only when reading from DS9 region files. If this keyword is not set or set to ‘mpl’ or None, then the matplotlib defaults will be used, with the exception that fill is turned off for Patch and Line2D artists.

The regions.PixelRegion.plot() method is a convenience method that combines these two steps (creating a matplotlib patch artist and adding it to an axis). If no axis is passed then it calls plt.gca().

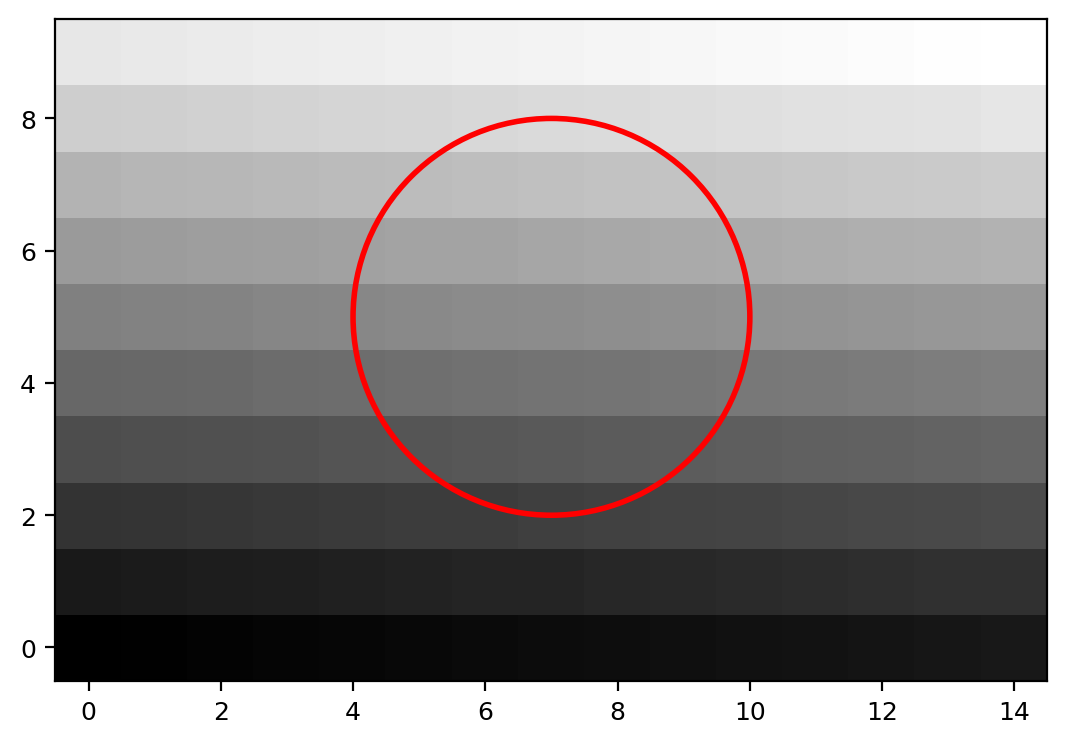

You can shift the origin of the region while plotting by supplying the origin pixel coordinates to either plot() or as_artist(). The plot() method also takes any keyword argument that the Patch object accepts for those regions represented as patches, or arguments Line2D accepts for point regions. For example:

import numpy as np
import matplotlib.pyplot as plt
from regions import PixCoord, CirclePixelRegion

fig, ax = plt.subplots()
region = CirclePixelRegion(center=PixCoord(x=7, y=5), radius=3)

data = np.arange(10 * 15).reshape((10, 15))
ax.imshow(data, cmap='gray', interpolation='nearest', origin='lower')
region.plot(ax=ax, color='red', lw=2.0)

(Source code, png, hires.png, pdf, svg)

_images/plotting-2.png

The documentation for RectanglePixelRegion and EllipsePixelRegion also shows plotting examples.

Plotting Sky Regions

Note that SkyRegion objects do not have an as_artist() or plot() method. To plot a SkyRegion object, you will need to convert it to a pixel region (using a WCS object):

>>> from astropy.coordinates import Angle, SkyCoord
>>> from regions import CircleSkyRegion
>>> sky_center = SkyCoord(42, 43, unit='deg')
>>> sky_radius = Angle(25, 'deg')
>>> sky_region = CircleSkyRegion(sky_center, sky_radius)
>>> pixel_region = sky_region.to_pixel(wcs)
>>> pixel_region.plot()

Plotting Spherical Sky Regions

Similarlly, SphericalSkyRegion objects do not have an as_artist() or plot() method. To plot a SphericalSkyRegion object, you will need to convert it to a pixel region (using a WCS object). Boundary distortions effects can also be included in this conversion (by setting the include_boundary_distortions keyword), to capture the effects of projecting from spherical to a planar geometry. (See the second example in Examples.)

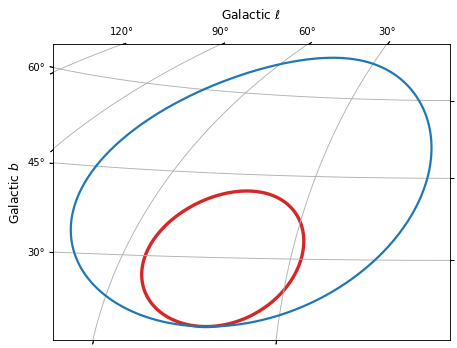

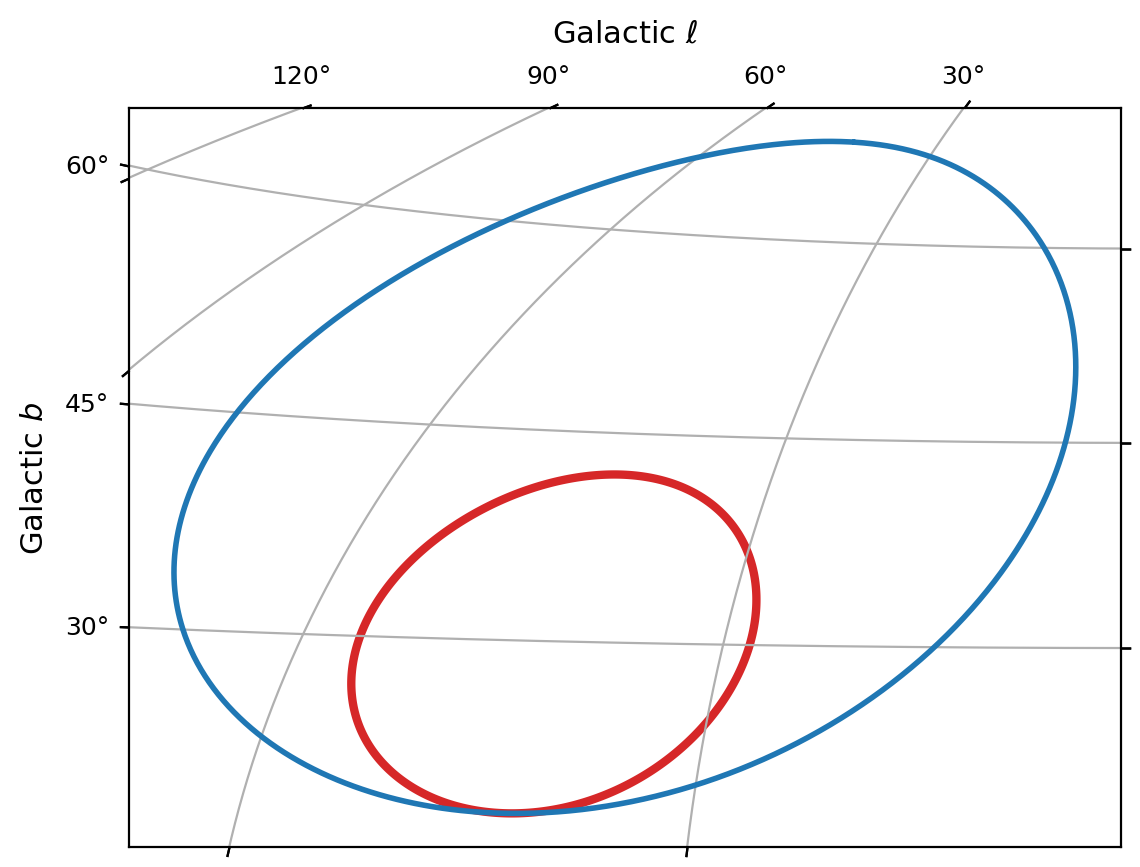

It is also possible to use the coordinates of a discretized SphericalSkyRegion to show the region’s boundary in a figure.

from astropy.coordinates import Angle, SkyCoord
import matplotlib.pyplot as plt

from regions import CircleSphericalSkyRegion, make_example_dataset

dataset = make_example_dataset(data='simulated')
wcs = dataset.wcs

sph_sky_center = SkyCoord(42, 30, unit='deg', frame='galactic')
sph_sky_radius = Angle(12, 'deg')
sph_sky_region = CircleSphericalSkyRegion(sph_sky_center, sph_sky_radius)

fig, ax = plt.subplots(subplot_kw=dict(projection=wcs))
ax.grid(True)
ax.set_xlabel(r"Galactic $\ell$")
ax.set_ylabel(r"Galactic $b$")

sph_sky_region.to_pixel(
   wcs=wcs,
   include_boundary_distortions=True,
   discretize_kwargs={"n_points":1000}
).plot(ax=ax, color='tab:red', lw=3)

sph_sky_center2 = SkyCoord(42, 43, unit='deg', frame='galactic')
sph_sky_radius2 = Angle(25, 'deg')
sph_sky_region2 = CircleSphericalSkyRegion(sph_sky_center2, sph_sky_radius2)
poly_sph_sky2 = sph_sky_region2.discretize_boundary(n_points=1000)
ax.plot(
    poly_sph_sky2.vertices.l,
    poly_sph_sky2.vertices.b,
    lw=2, color="tab:blue",
    transform=ax.get_transform('galactic'),
)

(Source code, png, hires.png, pdf, svg)

_images/plotting-3.png
